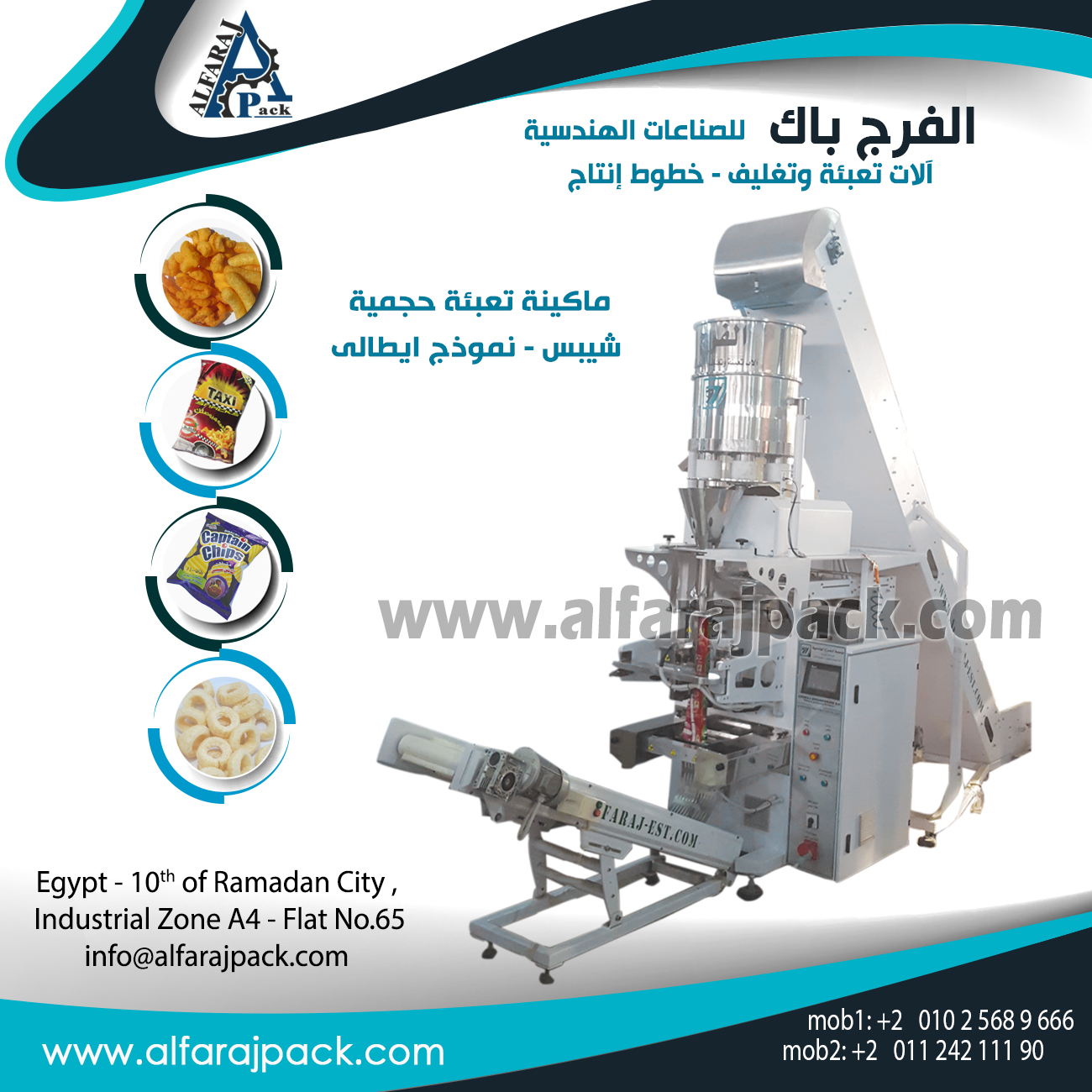

Chips Filling Machine - Advanced System
Chips Filling Machine - Advanced System
Group Automatic packaging:
The machine operates a pneumatic system "control all machine movements electronically"
Production capacity 40 == 60 Envelope per minute
The envelope shape is a three-sided welded pad
The length of the envelope is 10 - 30 cm, the width of the envelope according to the table
The weight system works from 20 - 50 grams
Packing system The weights are determined by the telescopic cups made of food polyamate
Electrical parts from the German company Muller and LG and the Italian watch are marked CE
All air valves and pistons are from German FESTO or from Italian company Bonesi CE
3-hp engine, Abana Motorsan or Ströter Antriebstechnik
Gearbox from MOTOVARIO Italian or from PGR
The Czech packing engine is 1 hp or from Abana Motorsan or Ströter Antriebstechnik
The machine is equipped with a photosil set to control the length of the color product bearing CE mark
The machine works in packing all heat rolls except PE
All contact parts are made of stainless steel 304
The machine operates a pneumatic system with 8 bar pressure of 200 liters / d and a very easy mechanical system
Electric power 220 volts 50 - 60 Hertz, capacity 5500 watts
Machine dimensions:
Width: 130 cm
Length: 230 cm
Height: 275 cm
Machine weight: 950 kg
Line Operators
Z-shaped feeder path made of thermally coated iron on a propell base, with 1 horsepower motor
All electrical parts are made by German Moeller, with a photosil group attached to the machine tank to operate automatically
Multi-speed throttle to control the flow of material to be transported through a chrome basin
Al-Qashat is made from a Turkish food-laden food bleamite with 5 cm high rails and barriers
A conveyor belt for the reception of the packaged envelopes of the machine with turbocharger in addition to the LG
Thermal thermal printer, three lines of printing
Materials that the machine fills:
Chips
Chips of maize chips of pallet loops of coarse atom
Pfk Vashvash
