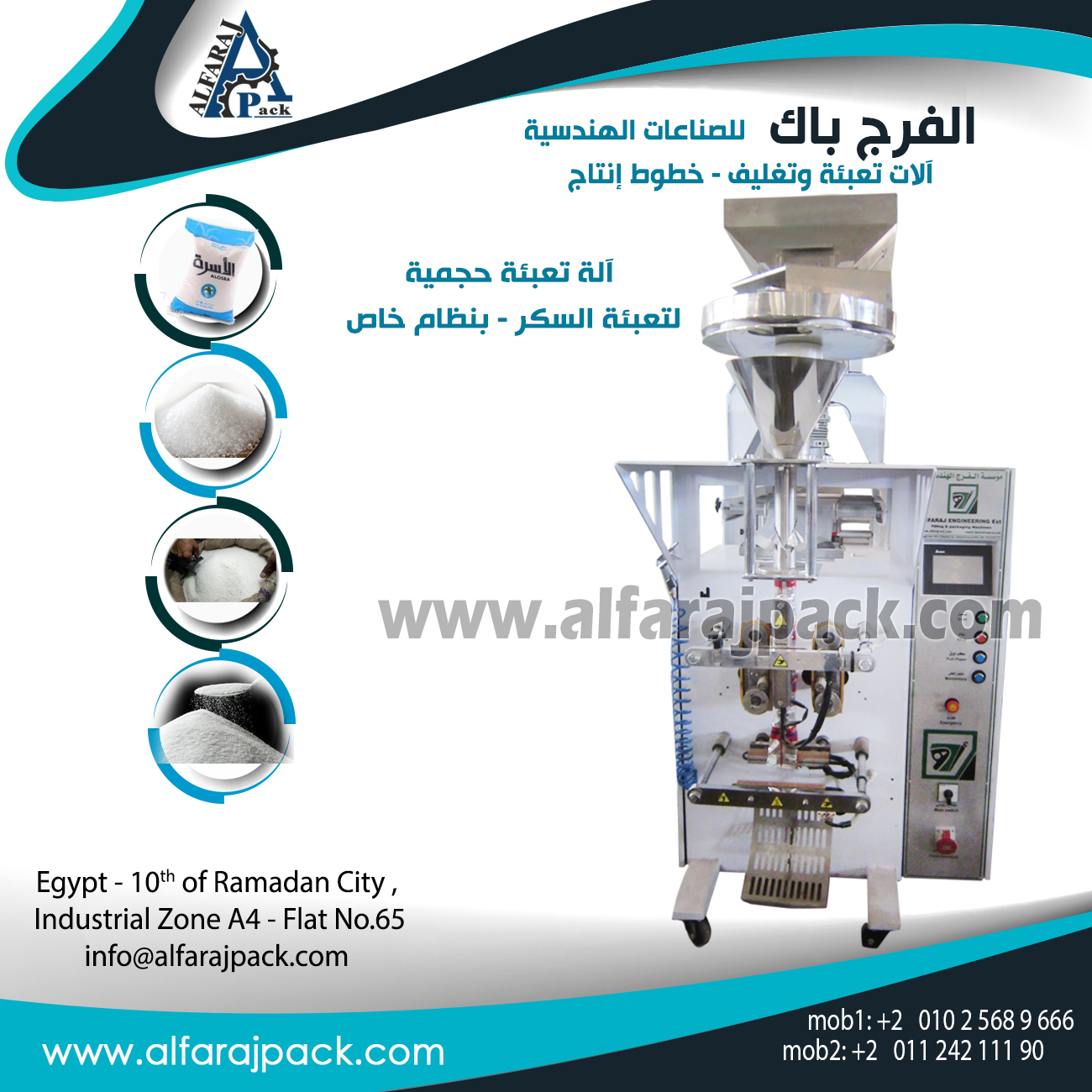

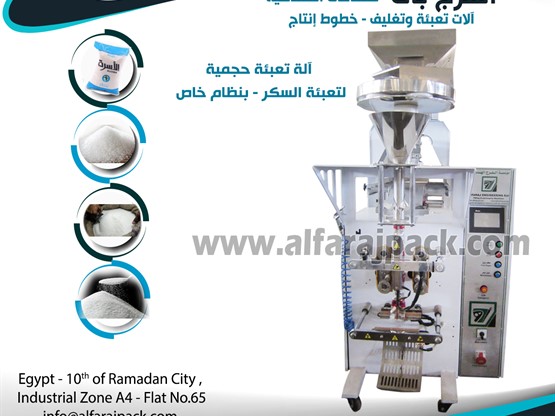

Packing & volumetric air system Machine (Pneumatic) to fill sugar

PACKAGING AND PACKAGING MACHINES
PACKAGING AND PACKAGING MACHINES


Filling and packaging machine for volume system - for detergents


Packing and packaging machine

From Explain Faraj Bak Engineering Industries
The best industrial company in the production of packaging machines volumetric specifications
It is suitable for all purposes
Filling of chips, Snacks and packing legumes of all kinds



Sacks Filling Machine

Technical Specifications :

Production capacity 40 - 60 Envelopes per minute (depending on the nature of the product and the quality of the roller used)

Envelope dimensions (on request)

The envelope shape is a three-sided welded pad

The required weight (on request) is a volumetric system

All material contact pieces are made of 304 stainless steel

Packing system The weights are determined by the telescopic cups made of 304 stainless steel food

Very easy mechanic system 8 miles for nitration

The machine is equipped with protective doors made of transparent glass fiber from all directions

The machine is equipped with a touch screen LCD touchscreen LS Korean to control all movements of the machine electronically and the screen contains 3 languages ​​on demand

The movements of the machine are controlled by a sophisticated and fast-response (PLC) computer with the possibility of programming and modification via the internet
Korean LS brand

All air parts of fuses and pistons from FESTO German company or SMC of Japan bear CE mark
The Korean AUTONICS brand has a sophisticated and precise control system

The machine speed control valves of LS Korean brand bear the CE mark

Staplers, cutters and control switches from the French company SCHNEIDER

The machine works in packing all thermal rolls except PE / PE /

All of the centers are non-corrosive and are non-corrosive, made of chrome for continuous working 24 hours

The machine operates a pneumatic system with 7 to 8 bar pressure of 300 liters / d and a very easy mechanical system

The machine is equipped with an engine / 1 / Italian horse + Italian speed tray with an inverter for packing

The machine is equipped with an engine / 3 / Italian horse + an Italian speed tray with an Enveloper for the package

The machine is equipped with a set of color photocell to control the length of the product electronically number 1 brand SICK German industry

All electric parts, pistons, engines, inverters, PLC and photosil bear the CE mark

Power: 220V or 380V 50 Hz (5000W)

Machine dimensions: Width (100) cm and length (240) cmWith (300) cm Machine weight (900) kg

The machine is equipped with a kit box with various maintenance and spare parts

A detailed electrical diagram is attached to the machine

All motors are equipped with circuit breakers and protection relays as well as inverter welding
 Optional Extras:

     - PVC conveyor belt conveyor with reservoir, screw, control circuit and electronic sensors to automatically feed the machine with the product

     - Round table to receive the product

     - A product delivery line

     -Printing the validity date

     - Nitrogen pump device inside the package

     -The bag blowing device

     - The device of emptying the bag of air

     - UV sterilization product

     - UV sterilization device

 All the machines manufactured in our company are ISO 9001 certified. ISO 14001.ISO 18001
All machines manufactured in our company are CE certified
